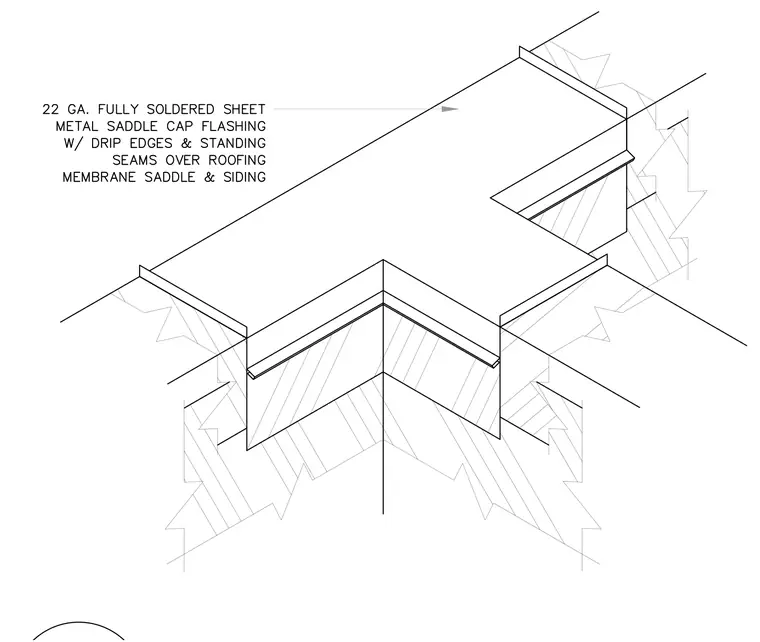

The intersection features a twenty-two gauge fully soldered sheet metal saddle cap flashing with drip edges and standing seams installed over a roofing membrane saddle and siding.
