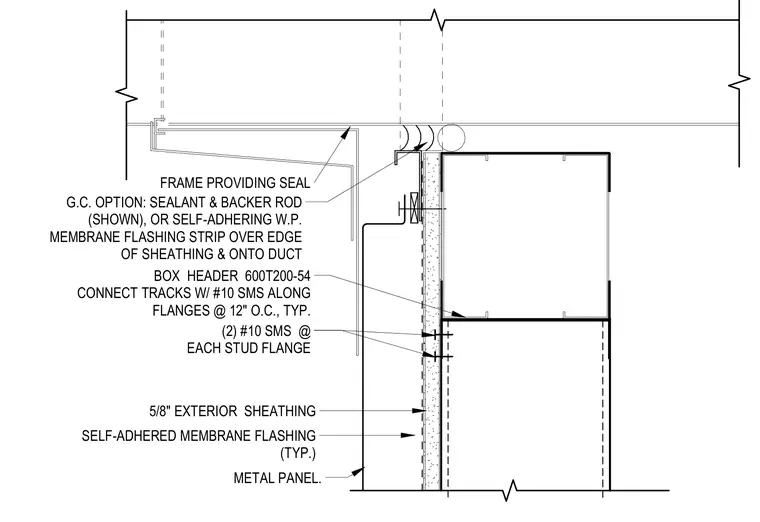

A light-gauge steel box header and exterior sheathing interface with waterproofing and facade elements. A 600T200-54 cold-formed steel box header features tracks connected by number 10 sheet metal screws along flanges at twelve inches on center. Five-eighths-inch exterior sheathing is covered by a self-adhered waterproof membrane flashing strip extending over the edge of the sheathing onto the duct frame. A general contractor option provides sealant and a backer rod in lieu of the self-adhering membrane flashing strip. Two number 10 sheet metal screws secure each stud flange, interfacing with an exterior metal panel.
METAL PANEL. G.C. OPTION: SEALANT & BACKER ROD (SHOWN), OR SELF-ADHERING W.P. MEMBRANE FLASHING STRIP OVER EDGE OF SHEATHING & ONTO DUCT FRAME PROVIDING SEAL (2) #10 SMS @ EACH STUD FLANGE SELF-ADHERED MEMBRANE FLASHING (TYP.) 5/8" EXTERIOR SHEATHING BOX HEADER 600T200-54 CONNECT TRACKS W/ #10 SMS ALONG FLANGES @ 12" O.C., TYP.
