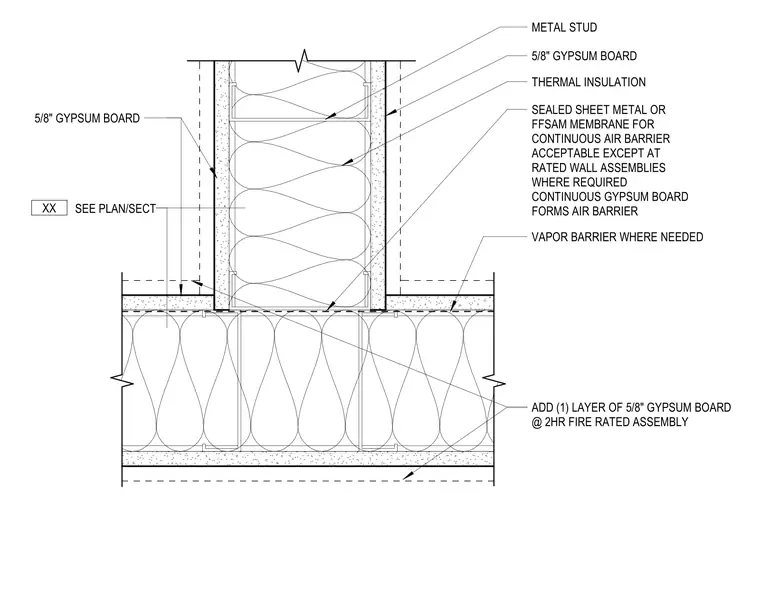

This T-intersection assembly consists of metal stud partitions finished with five-eighths inch gypsum board on both sides. Thermal insulation is installed within the stud cavities. A sealed sheet metal or flexible flashing and air membrane is utilized to maintain a continuous air barrier, except at fire-rated wall assemblies where the continuous gypsum board itself serves as the air and vapor barrier. For two-hour fire-rated assemblies, an additional layer of five-eighths inch gypsum board is required as indicated by the project plans and sections.
Text on the drawing
5/8" GYPSUM BOARD 5/8" GYPSUM BOARD METAL STUD THERMAL INSULATION SEALED SHEET METAL OR FFSAM MEMBRANE FOR CONTINUOUS AIR BARRIER ACCEPTABLE EXCEPT AT RATED WALL ASSEMBLIES WHERE REQUIRED CONTINUOUS GYPSUM BOARD FORMS AIR BARRIER VAPOR BARRIER WHERE NEEDED ADD (1) LAYER OF 5/8" GYPSUM BOARD @ 2HR FIRE RATED ASSEMBLY SEE PLAN/SECT XX
