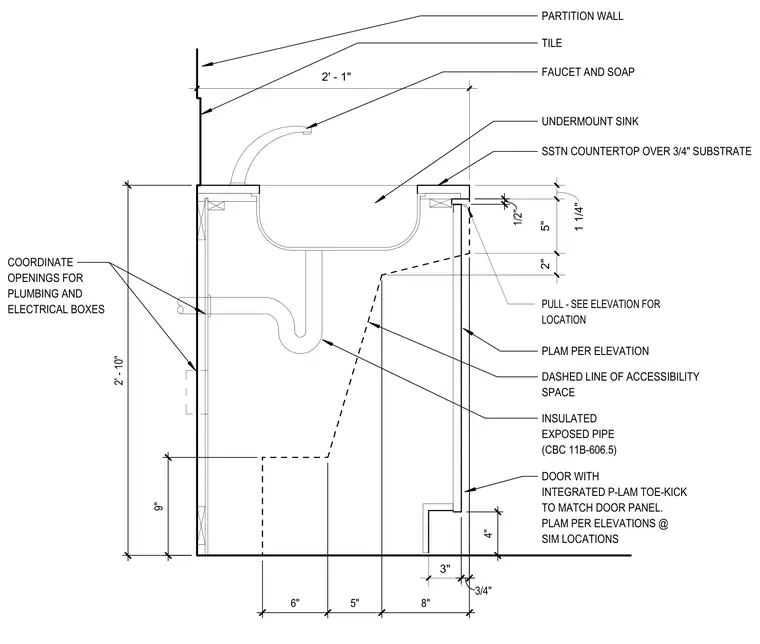

An accessible sink cabinet assembly features a stainless steel countertop mounted over a three-quarter-inch substrate, supporting an undermount sink with a faucet and soap dispenser. The partition wall behind the vanity is finished with tile. The casework includes a door with an integrated plastic laminate toe-kick matching the door panel, with plastic laminate finishes applied per elevations at similar locations. Exposed plumbing pipes beneath the sink are insulated to comply with accessibility standards (CBC 11B-605.5), coordinated with rough-in openings for plumbing and electrical boxes. Dashed lines outline the required knee and toe clearance accessibility space beneath the counter.
2' - 1" 3" 2" 5" 1 1/4" PARTITION WALL UNDERMOUNT SINK SSTN COUNTERTOP OVER 3/4" SUBSTRATE DOOR WITH INTEGRATED P-LAM TOE-KICK TO MATCH DOOR PANEL. PLAM PER ELEVATIONS @ SIM LOCATIONS INSULATED EXPOSED PIPE (CBC 11B-606.5) COORDINATE OPENINGS FOR PLUMBING AND ELECTRICAL BOXES 1 / 2 " TILE FAUCET AND SOAP 6 " 5 " 8 " 3 / 4 " 4 " 9 " 2 ' - 1 0 " PLAM PER ELEVATION P U L L - S E E E L E V A T I O N F O R L O C A T I O N DASHED LINE OF ACCESSIBILITY SPACE
