A speaker rigging corner connection using an Adaptive Technologies SAS-GL beam connector kit, locking bars, and associated hardware. The assembly incorporates Adaptive Technologies SAS-66-RB and SAS-24-RB rigging bars secured with one-half inch by five-and-a-half-inch hex bolts and nylon lock nuts, typically four per connector kit. An eye bolt of the same dimensions is included for hanging or attachment points, with one per connector kit. The locking bars tie the structural components together to maintain rigid alignment at the corner junction.

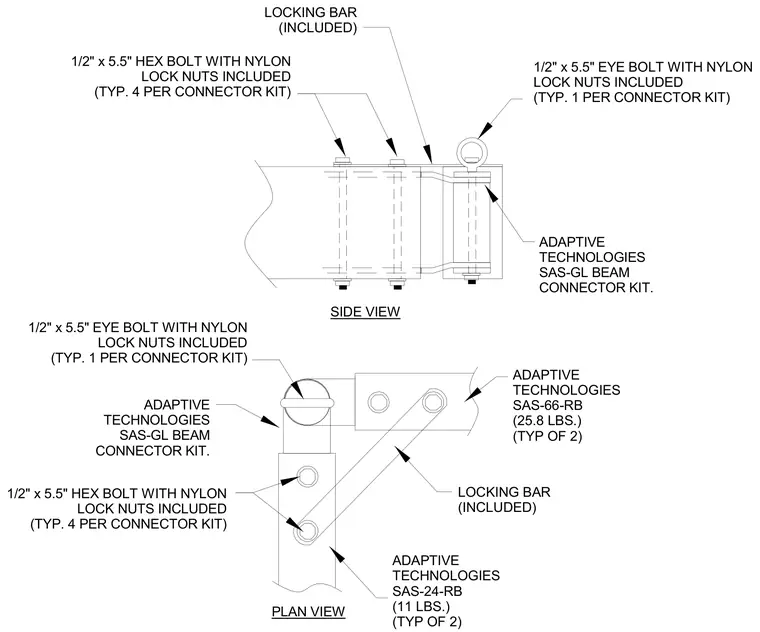

ADAPTIVE TECHNOLOGIES SAS-GL BEAM CONNECTOR KIT. 1/2" x 5.5" HEX BOLT WITH NYLON LOCK NUTS INCLUDED (TYP. 4 PER CONNECTOR KIT) ADAPTIVE TECHNOLOGIES SAS-GL BEAM CONNECTOR KIT. LOCKING BAR (INCLUDED) ADAPTIVE TECHNOLOGIES SAS-66-RB (25.8 LBS.) (TYP OF 2) 1/2" x 5.5" HEX BOLT WITH NYLON LOCK NUTS INCLUDED (TYP. 4 PER CONNECTOR KIT) 1/2" x 5.5" EYE BOLT WITH NYLON LOCK NUTS INCLUDED (TYP. 1 PER CONNECTOR KIT) PLAN VIEW SIDE VIEW LOCKING BAR (INCLUDED) ADAPTIVE TECHNOLOGIES SAS-24-RB (11 LBS.) (TYP OF 2) 1/2" x 5.5" EYE BOLT WITH NYLON LOCK NUTS INCLUDED (TYP. 1 PER CONNECTOR KIT)
