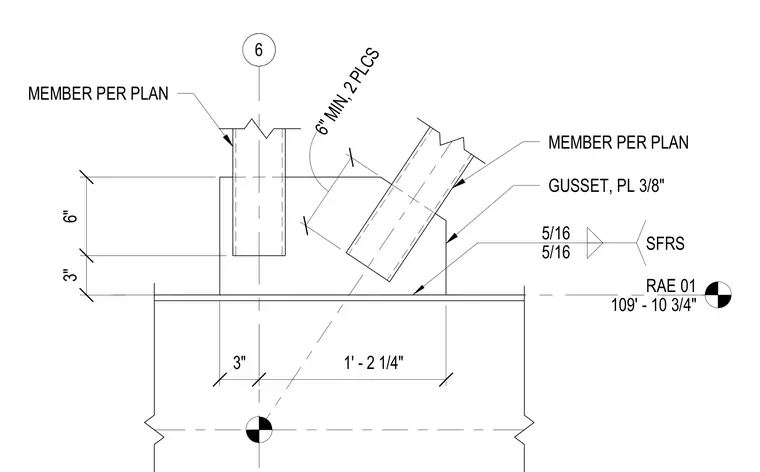

Structural steel framing members connect to a three-eighths-inch thick gusset plate with five-sixteenths-inch fillet welds. Members are sized per plan and attach to the supporting structural element at elevation 109 feet 10 and three-quarter inches. A six-inch minimum dimension is maintained across two places.
RAE 01 109' - 10 3/4" 6 5/16 5/16 SFRS MEMBER PER PLAN MEMBER PER PLAN GUSSET, PL 3/8" 6" 3" 6" MIN, 2 PLCS 3" 1' - 2 1/4"
