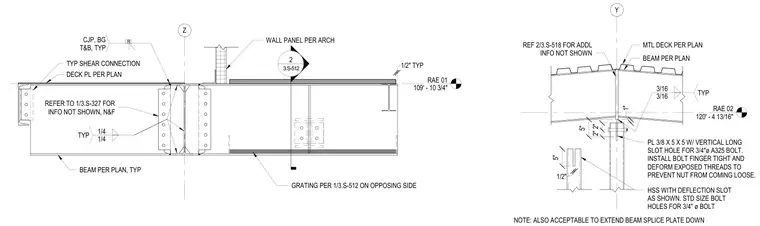

A structural steel connection supports a lower grating grid and metal deck. The assembly features a structural steel beam connected per plan with a typical shear connection, complete with a three-eighths by five by five-inch plate containing a vertical long slot hole for a three-quarter-inch diameter A325 bolt. The bolt is installed finger tight with deformed exposed threads to prevent the nut from loosening. A five-inch hollow structural section support with a deflection slot is welded with three-sixteenth-inch fillet welds. Additional notes permit extending the beam splice plate down one inch and referencing related drawings for further information.
RAE 01 109' - 10 3/4" Z 2 3.S-512 TYP SHEAR CONNECTION BEAM PER PLAN, TYP DECK PL PER PLAN GRATING PER 1/3.S-512 ON OPPOSING SIDE 1/2" TYP R CJP, BG T&B, TYP WALL PANEL PER ARCH 1/4 1/4 TYP REFER TO 1/3.S-327 FOR INFO NOT SHOWN, N&F RAE 02 120' - 4 13/16" Y PL 3/8 X 5 X 5 W/ VERTICAL LONG SLOT HOLE FOR 3/4"ø A325 BOLT. INSTALL BOLT FINGER TIGHT AND DEFORM EXPOSED THREADS TO PREVENT NUT FROM COMING LOOSE. 3/16 3/16 TYP 5" 1/2" HSS WITH DEFLECTION SLOT AS SHOWN. STD SIZE BOLT HOLES FOR 3/4" ø BOLT BEAM PER PLAN MTL DECK PER PLAN 5" 2" 2" NOTE: ALSO ACCEPTABLE TO EXTEND BEAM SPLICE PLATE DOWN 1" REF 2/3.S-518 FOR ADDL INFO NOT SHOWN
