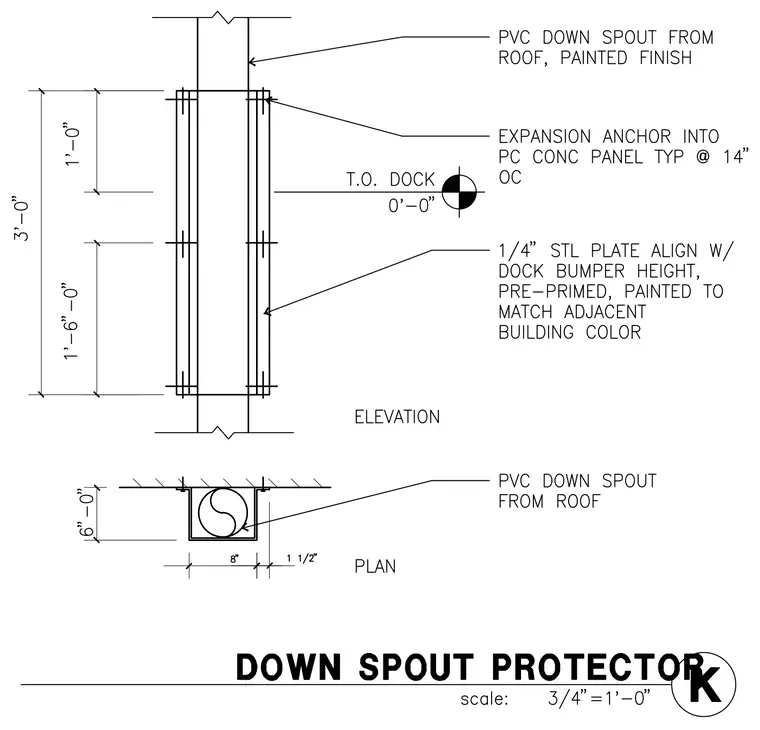

A painted PVC downspout from the roof routes vertically past a loading dock, protected by structural steel plate guards secured to precast concrete panels. Expansion anchors secure the steel plates into the precast concrete panel typically at fourteen inches on center. A quarter-inch steel plate aligns with the dock bumper height and is pre-primed and painted to match the adjacent building color. The plan view details an eight-inch wide channel profile enclosing the downspout with one-and-a-half-inch side clearances.
