Architectural · A-KJP67

Pathway Hd Modular

Materials

Elements

About this detail

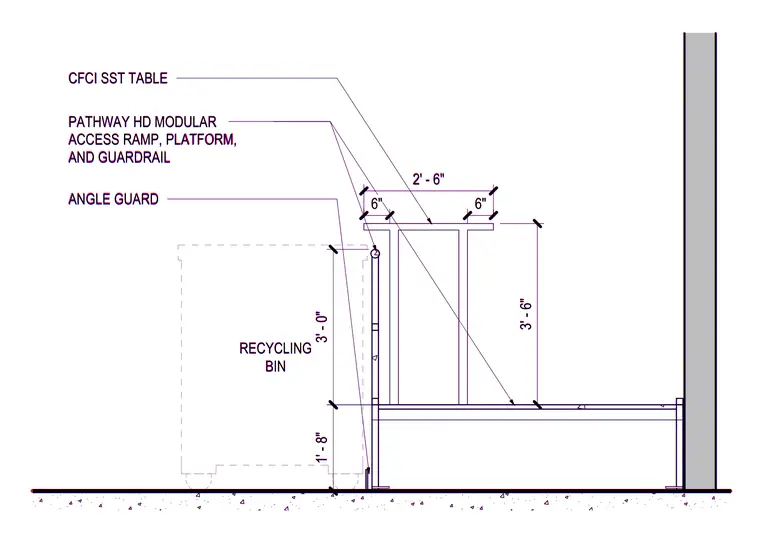

This modular access ramp and platform assembly incorporates an angle guard and a stainless steel table, positioned alongside a recycling bin. The platform stands at a height of three feet six inches, with the stainless steel table measuring two feet six inches wide with six-inch overhangs. The recycling bin is three feet tall with an additional one-foot-eight-inch clearance below. The entire unit is anchored above a concrete floor slab.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
