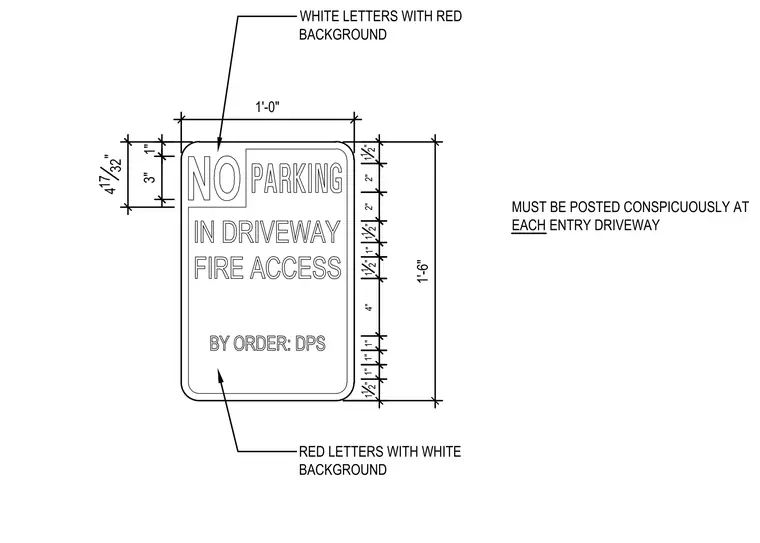

A regulatory parking prohibition sign for entry driveways features an overall width of one foot and height of one foot six inches. The top section contains white letters on a red background with a height of four and seventeen-thirty-seconds inches. The lower portion includes red letters on a white background with specific vertical text and line height dimensions noted throughout. The sign must be posted conspicuously at each entry driveway.
WHITE LETTERS WITH RED BACKGROUND 1'-0" 1" 4 17 32" 3" 1'-6" 1 1 2" 2" 2" 1 1 2" 1" 1 1 2" 4" 1" 1" 1" 1 1 2" RED LETTERS WITH WHITE BACKGROUND MUST BE POSTED CONSPICUOUSLY AT EACH ENTRY DRIVEWAY
