Text on the drawing

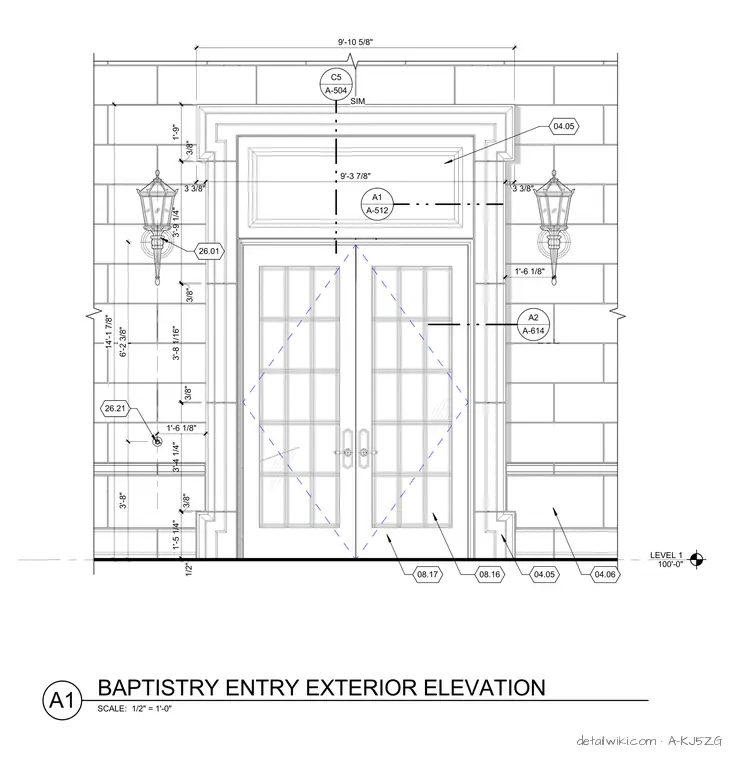

LEVEL 1 100'-0" A1 A-512 A2 A-614 C5 A-504 SIM 1'-9" 3/8" 3'-9 1/4" 3/8" 3'-8 1/16" 3/8" 3'-4 1/4" 3/8" 1'-5 1/4" 1/2" 3 3/8" 9'-3 7/8" 3 3/8" 9'-10 5/8" 14'-1 7/8" 26.21 26.01 04.05 04.06 04.05 08.16 08.17 6'-2 3/8" 3'-8" 1'-6 1/8" 1'-6 1/8" SCALE: 1/2" = 1'-0" A1 BAPTISTRY ENTRY EXTERIOR ELEVATION
