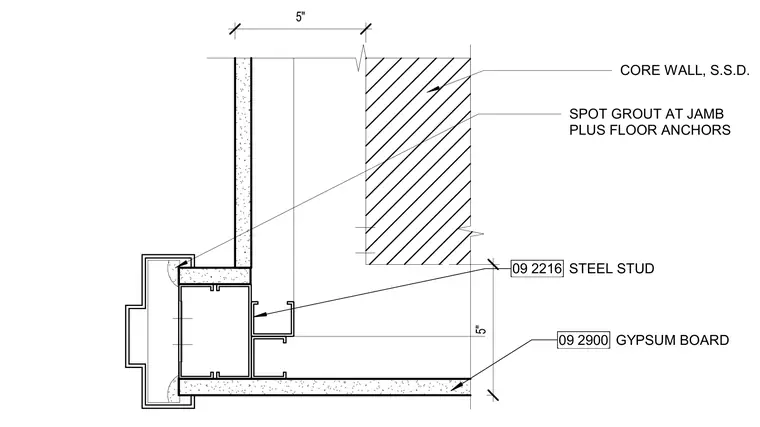

A five-inch steel stud partition frames into a concrete core wall utilizing spot grout at the jamb alongside floor anchors. Gypsum board finishes the wall assembly adjacent to the door frame profile.
CORE WALL, S.S.D. SPOT GROUT AT JAMB PLUS FLOOR ANCHORS 09 2900 GYPSUM BOARD 09 2216 STEEL STUD 5" 5"
