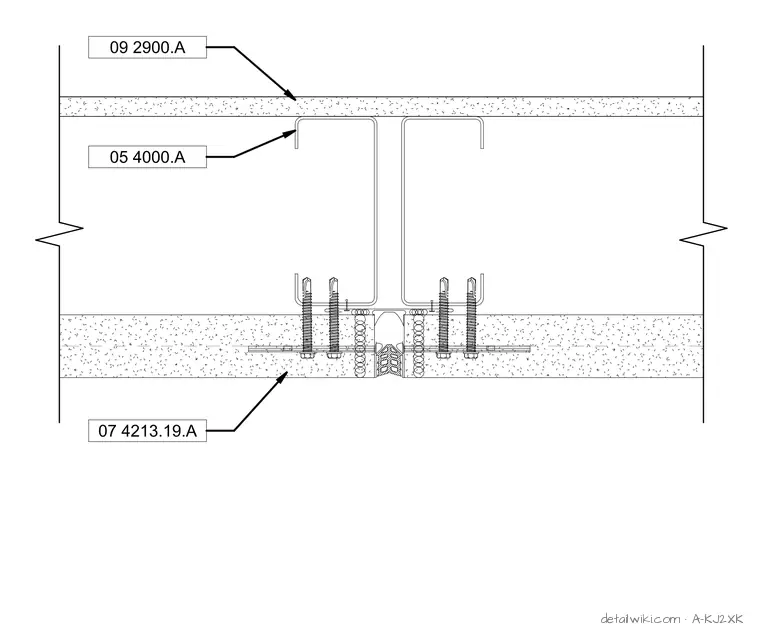

This assembly consists of two cold-formed steel studs positioned back-to-back at an expansion joint. The studs are secured to the wall finish, identified as 07 4213.19.A, using self-drilling screws. A vertical expansion joint profile is centered between the studs, integrated into the finish layer. The opposite side of the wall assembly is finished with a layer identified as 09 2900.A.
