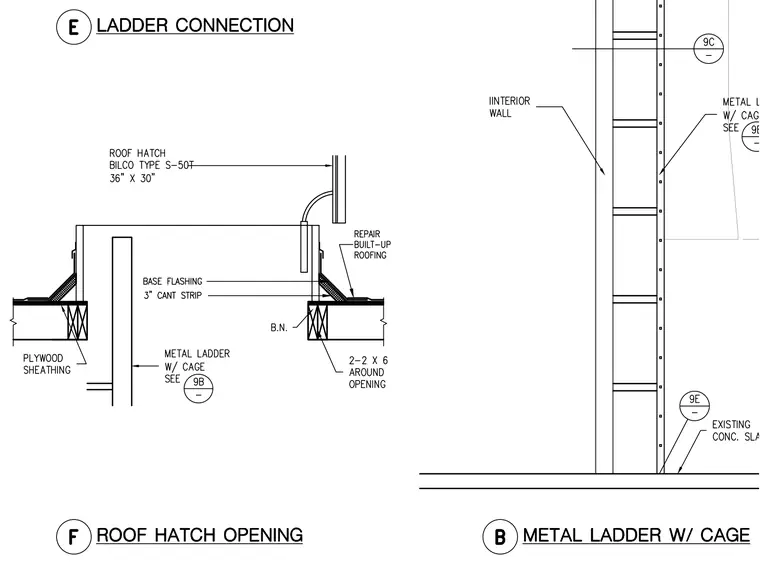

A Bilco Type S-50T roof hatch measuring 36 inches by 30 inches installs over a roof opening framed with two-by-six wood members around the perimeter. Repaired built-up roofing ties into base flashing set over a 3-inch cant strip and plywood sheathing. A metal ladder with safety cage extends down past the interior wall and connects to the existing concrete slab.
