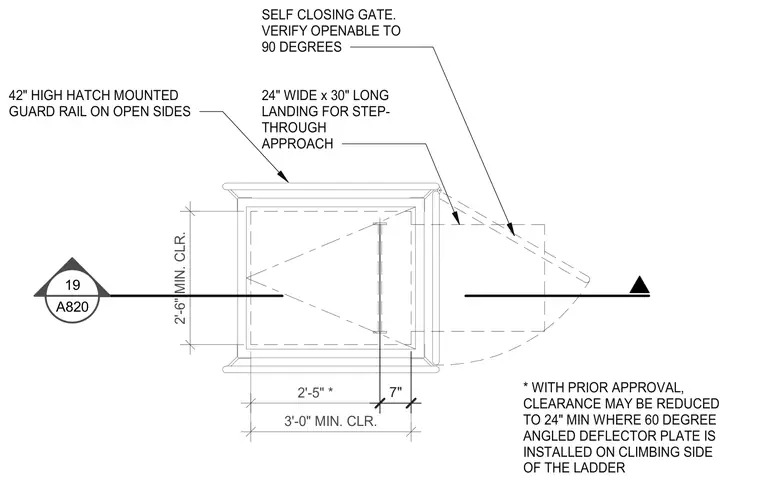

The roof hatch layout provides a twenty-four-inch wide by thirty-inch long landing for a step-through approach. A forty-two-inch high hatch-mounted guardrail is installed on the open sides along with a self-closing gate verified to open to ninety degrees. Clearances require a three-foot minimum clearance overall, with a two-foot six-inch minimum clearance across the hatch opening and specific dimensions of two feet five inches plus seven inches. With prior approval, clearance may be reduced to a twenty-four-inch minimum where a sixty-degree angled deflector plate is installed on the climbing side of the ladder.
3'-0" MIN. CLR. 2'-5" * 2'-6" MIN. CLR. * WITH PRIOR APPROVAL, CLEARANCE MAY BE REDUCED TO 24" MIN WHERE 60 DEGREE ANGLED DEFLECTOR PLATE IS INSTALLED ON CLIMBING SIDE OF THE LADDER 24" WIDE x 30" LONG LANDING FOR STEP- THROUGH APPROACH SELF CLOSING GATE. VERIFY OPENABLE TO 90 DEGREES 42" HIGH HATCH MOUNTED GUARD RAIL ON OPEN SIDES 7" 19 A820
