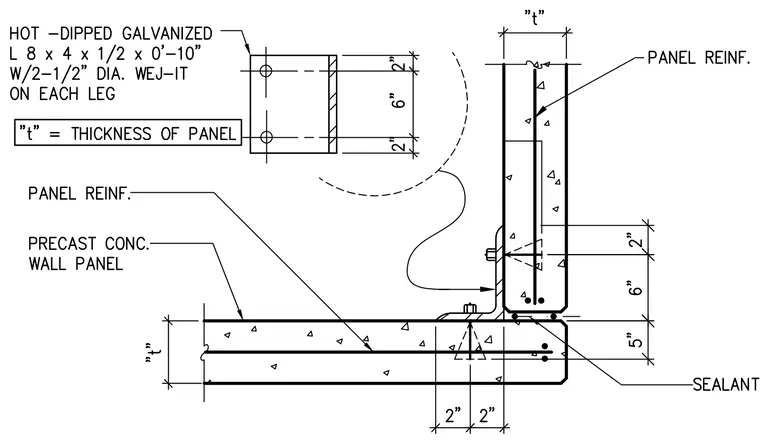

Precast concrete wall panels of thickness t are joined at a corner with an interior hot-dipped galvanized angle measuring 8 by 4 by 1/2 inches and 0 feet 10 inches long. The angle is secured to each precast panel leg using two 1/2-inch diameter wedge anchors. Internal panel reinforcement consists of steel bars placed within the precast concrete. A sealant joint is provided at the exterior corner between the abutting precast panels.
