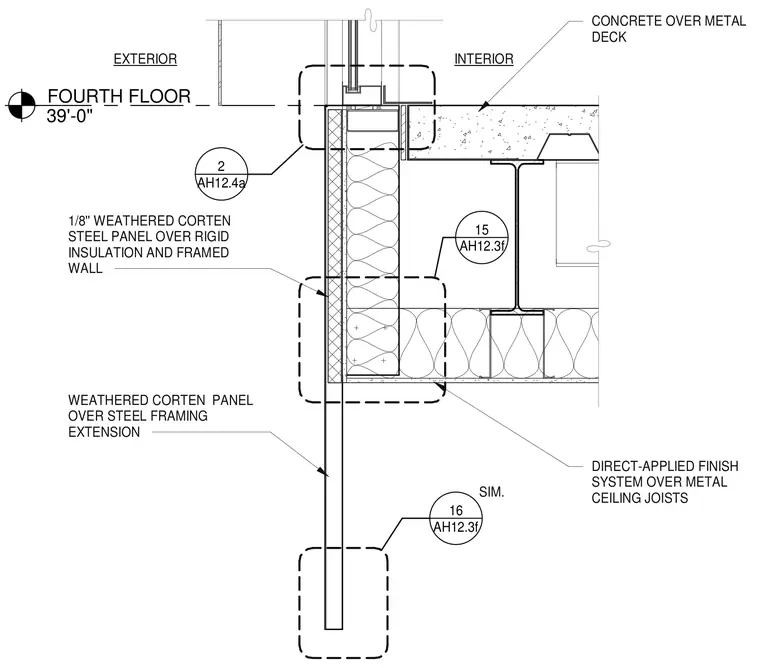

An exterior wall assembly featuring one-eighth-inch weathered Cor-Ten steel panels installed over rigid insulation and a framed wall. The exterior cladding extends downward past the fourth floor level, supported by steel framing extensions. The interior features a concrete-on-metal-deck floor system supported by structural steel framing and a direct-applied finish system over metal ceiling joists.
FOURTH FLOOR 39'-0" AH12.4a 2 INTERIOR EXTERIOR 1/8'' WEATHERED CORTEN STEEL PANEL OVER RIGID INSULATION AND FRAMED WALL WEATHERED CORTEN PANEL OVER STEEL FRAMING EXTENSION CONCRETE OVER METAL DECK DIRECT-APPLIED FINISH SYSTEM OVER METAL CEILING JOISTS AH12.3f 15 AH12.3f 16 SIM.
