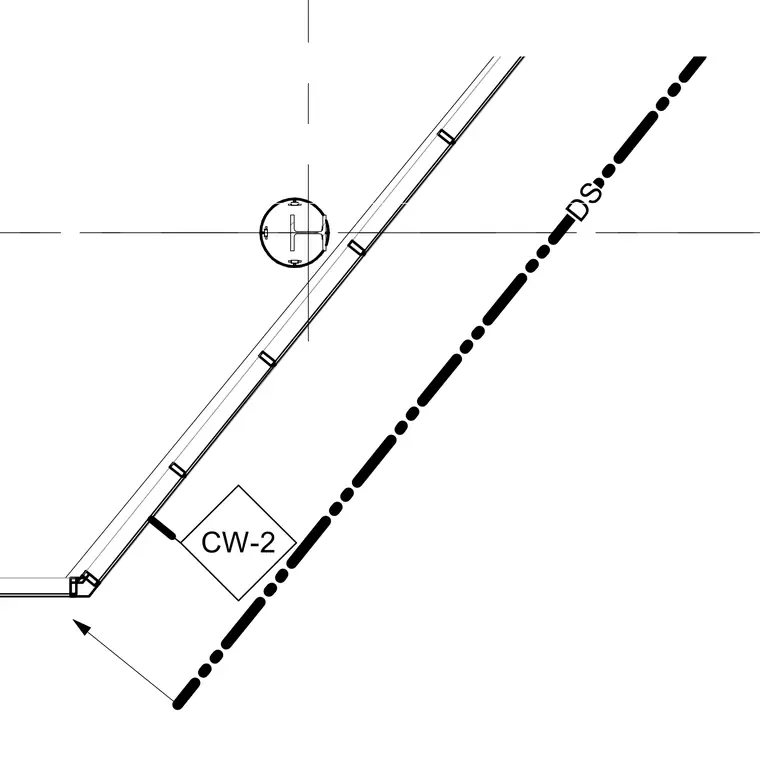

The corner intersection of a curtain wall system is positioned adjacent to structural framing members. Angled glazing panels meet at a mullion corner junction, positioned relative to an intersecting column grid line and structural column shape. A designated curtain wall type CW-2 tag indicates the specific glazing assembly specification. Dashed lines denote grid or property lines associated with the exterior wall layout.
