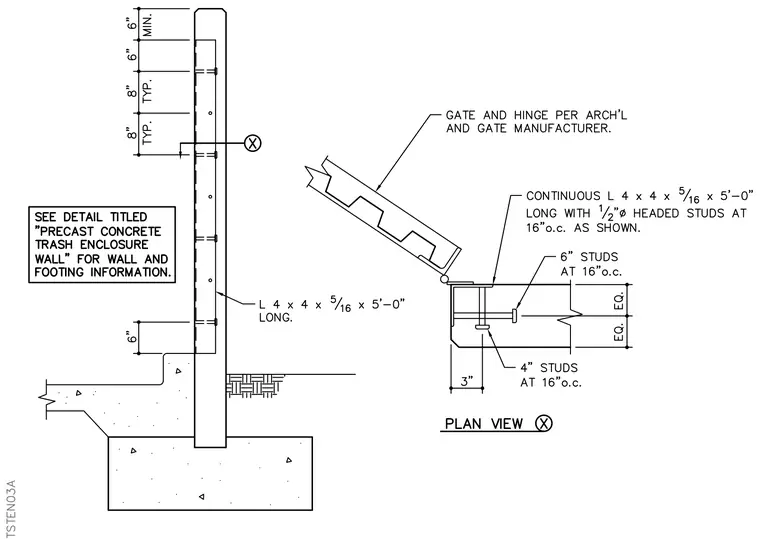

A continuous L 4 x 4 x 5/16 by 5 feet long steel angle anchors the gate hinge assembly to the precast concrete wall. The angle is secured with one-half inch diameter headed studs spaced at 16 inches on center, including specific 6-inch and 4-inch stud placements. The gate and hinge are installed per architectural specifications and the gate manufacturer's requirements. A separate precast concrete trash enclosure wall detail provides additional wall and footing information.
