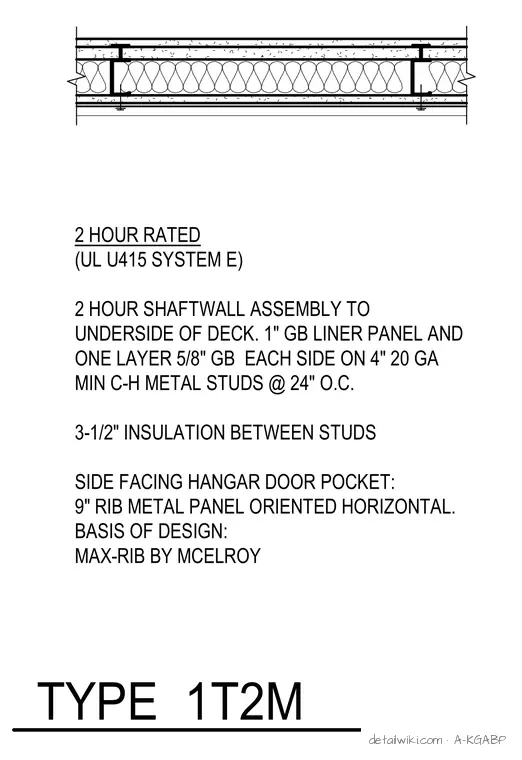

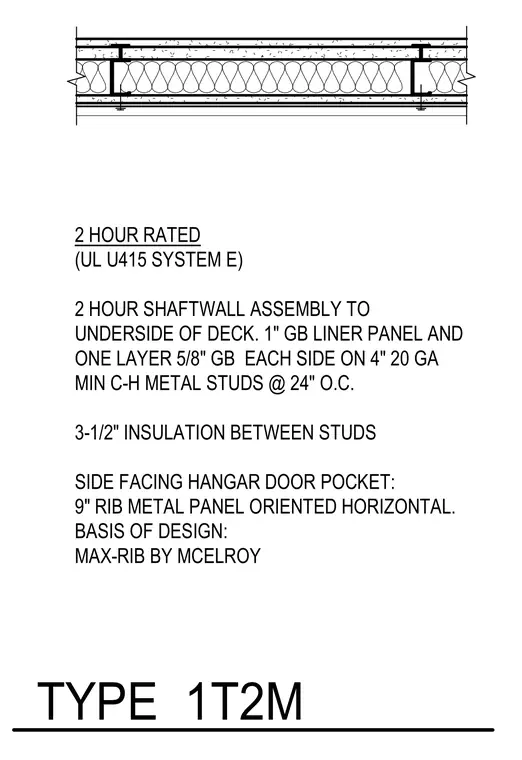

This two-hour rated shaftwall assembly is constructed in accordance with UL design U415 system E up to the underside of the deck. The wall consists of a one-inch gypsum board liner panel and one layer of five-eighths-inch gypsum board on each side, supported by four-inch twenty-gauge minimum C-H metal studs spaced at twenty-four inches on center. Three-and-a-half-inch insulation is installed between the studs. The side facing the hangar door pocket features a nine-inch rib metal panel oriented horizontally, utilizing the Max-Rib design by McElroy.
2 HOUR RATED (UL U415 SYSTEM E) 2 HOUR SHAFTWALL ASSEMBLY TO UNDERSIDE OF DECK. 1" GB LINER PANEL AND ONE LAYER 5/8" GB EACH SIDE ON 4" 20 GA MIN C-H METAL STUDS @ 24" O.C. 3-1/2" INSULATION BETWEEN STUDS SIDE FACING HANGAR DOOR POCKET: 9" RIB METAL PANEL ORIENTED HORIZONTAL. BASIS OF DESIGN: MAX-RIB BY MCELROY TYPE 1T2M
