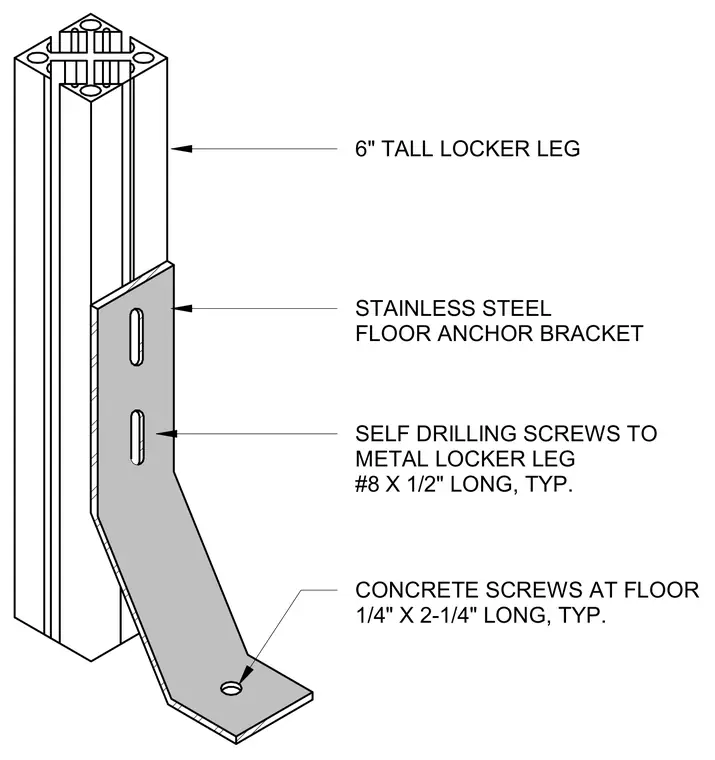

A six-inch tall metal locker leg is secured to the floor using a stainless steel floor anchor bracket. The bracket fastens to the side of the locker leg with typical number eight by one-half-inch long self-drilling screws. The horizontal foot of the bracket anchors to the concrete floor using typical one-quarter-inch by two-and-one-quarter-inch long concrete screws.
STAINLESS STEEL FLOOR ANCHOR BRACKET 6" TALL LOCKER LEG CONCRETE SCREWS AT FLOOR 1/4" X 2-1/4" LONG, TYP. SELF DRILLING SCREWS TO METAL LOCKER LEG #8 X 1/2" LONG, TYP.
