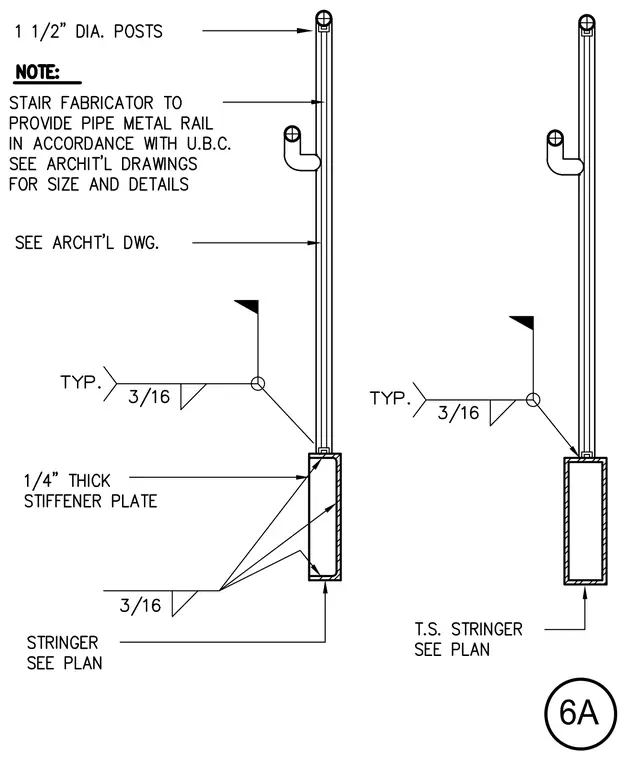

One-and-a-half-inch diameter posts connect to a tubular steel stringer sized per plan. A quarter-inch thick stiffener plate reinforces the connection. Three-sixteenth-inch fillet welds secure the post assembly to the stringer.
