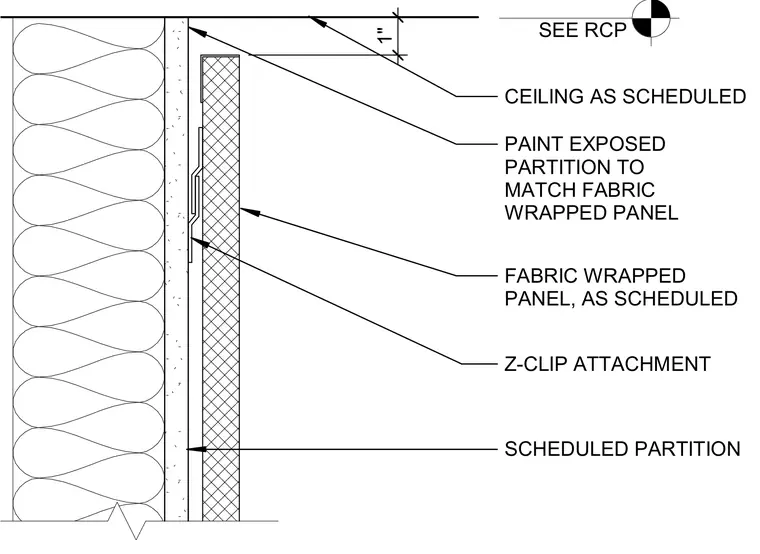

A fabric-wrapped panel is secured to a scheduled partition using a Z-clip attachment system. The top of the assembly terminates one inch below the ceiling as scheduled on the reflected ceiling plan. Exposed partition surfaces are painted to match the fabric-wrapped panel.
Z-CLIP ATTACHMENT SCHEDULED PARTITION FABRIC WRAPPED PANEL, AS SCHEDULED 1" SEE RCP PAINT EXPOSED PARTITION TO MATCH FABRIC WRAPPED PANEL CEILING AS SCHEDULED
