A millwork toe-kick base assembly features an integral toe-kick secured to the floor substrate using continuous metal angles. The vertical and horizontal casework panels receive a three-quarter-inch cladding layer, with finishes specified per the interior finish schedule. Dimensions include a four-inch vertical toe-kick clearance and a three-inch horizontal offset from the base support line.

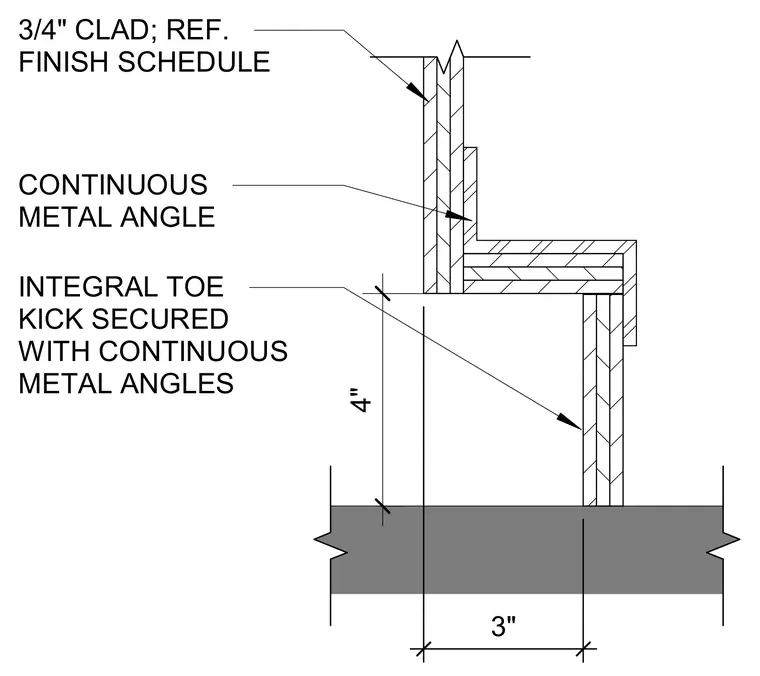

CONTINUOUS METAL ANGLE INTEGRAL TOE KICK SECURED WITH CONTINUOUS METAL ANGLES 3" 4" 3/4" CLAD; REF. FINISH SCHEDULE
