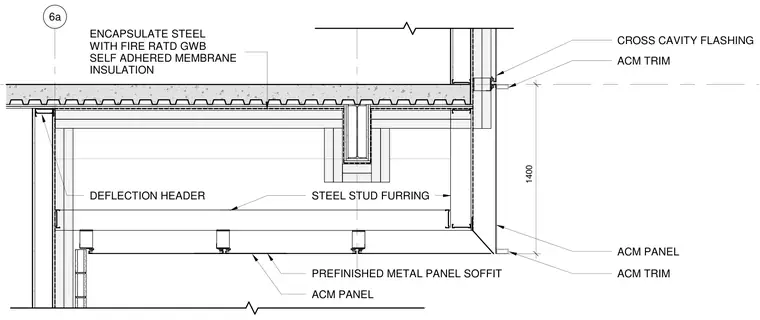

A prefinished metal panel soffit meets exterior aluminum composite material panels at a building overhang. The assembly is supported by steel stud framing with a deflection header tied back to structural steel encapsulated with fire-rated gypsum wallboard. A self-adhered membrane and insulation protect the deck assembly. Cross cavity flashing and ACM trim finish the exterior transitions and joints.
6a ACM TRIM CROSS CAVITY FLASHING ACM PANEL ACM TRIM 1400 STEEL STUD FURRING PREFINISHED METAL PANEL SOFFIT ENCAPSULATE STEEL WITH FIRE RATD GWB SELF ADHERED MEMBRANE INSULATION DEFLECTION HEADER ACM PANEL
