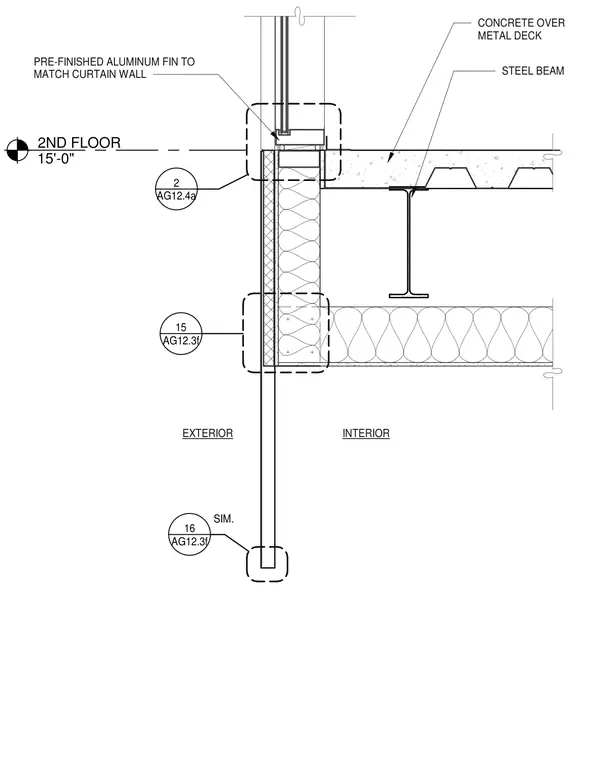

A concrete slab over metal deck bears on a structural steel beam at the second floor level. An exterior pre-finished aluminum fin is installed at the floor edge, matching the aesthetic of the adjacent curtain wall system.
2ND FLOOR 15'-0" INTERIOR EXTERIOR CONCRETE OVER METAL DECK STEEL BEAM PRE-FINISHED ALUMINUM FIN TO MATCH CURTAIN WALL AG12.4a 2 AG12.3f 15 AG12.3f 16 SIM.
