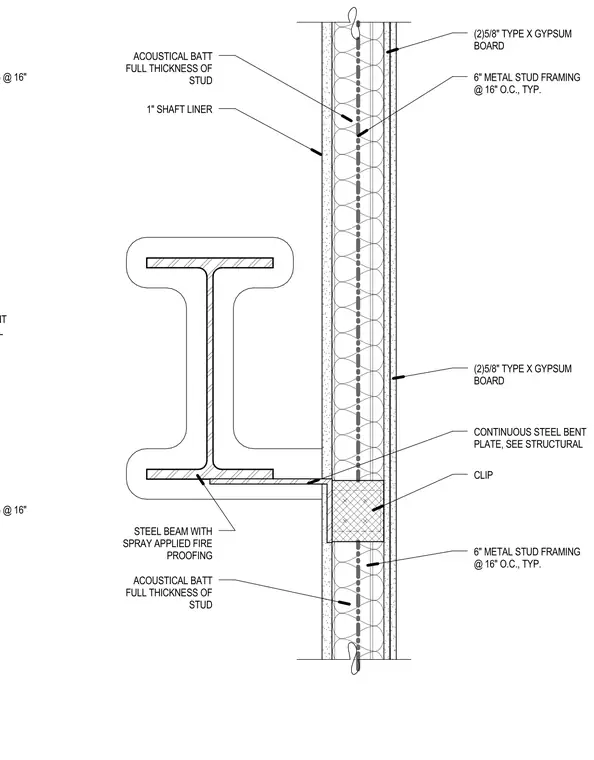

The assembly consists of a rated shaft wall framed with six-inch metal studs spaced at sixteen inches on center, lined with one-inch shaft liner and faced with two layers of five-eighths-inch Type X gypsum board on each side. Acoustical batt insulation fills the full thickness of the stud cavity. The wall is supported at the structural steel beam via a continuous steel bent plate and clip, with the steel beam protected by spray-applied fireproofing.
6" METAL STUD FRAMING @ 16" CONTINUOUS STEEL BENT PLATE, SEE STRUCTURAL 6" METAL STUD FRAMING @ 16" ACOUSTICAL BATT FULL THICKNESS OF STUD 6" METAL STUD FRAMING @ 16" O.C., TYP. CLIP (2)5/8" TYPE X GYPSUM BOARD ACOUSTICAL BATT FULL THICKNESS OF STUD 6" METAL STUD FRAMING @ 16" O.C., TYP. (2)5/8" TYPE X GYPSUM BOARD 1" SHAFT LINER CONTINUOUS STEEL BENT PLATE, SEE STRUCTURAL STEEL BEAM WITH SPRAY APPLIED FIRE PROOFING
