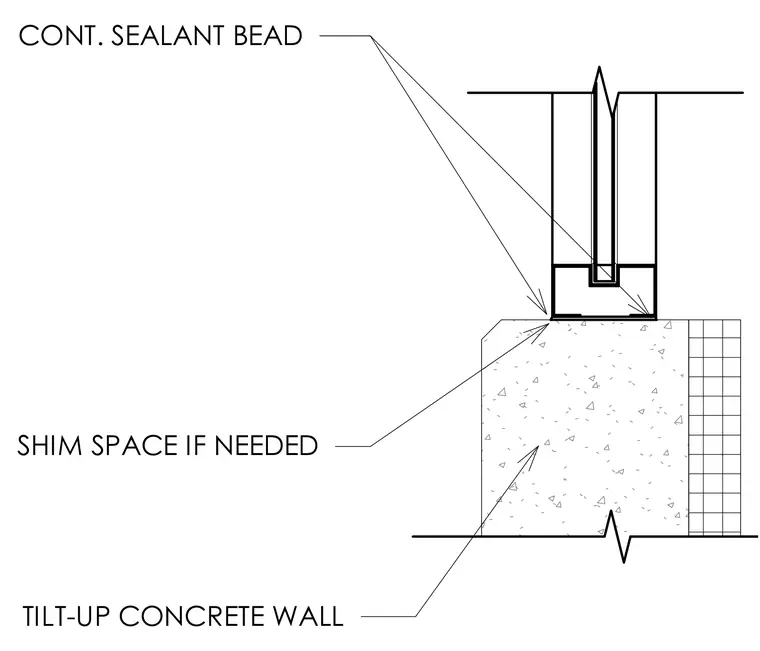

A tilt-up concrete wall panel bears upon a lower concrete element with an adjustable shim space provided as needed. A continuous sealant bead is applied along the joint to maintain weather tightness.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD
