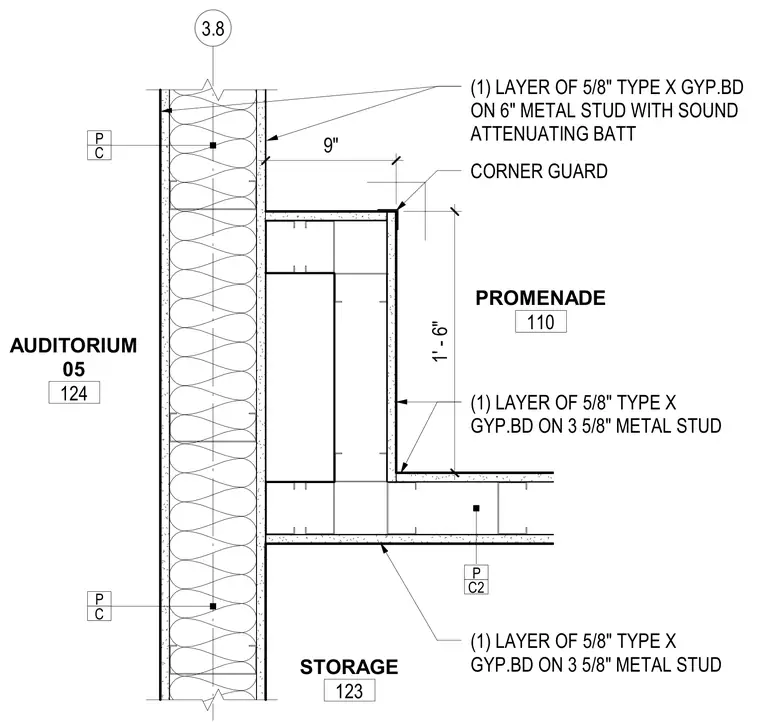

An acoustic wall assembly is framed with six-inch metal studs and sound-attenuating batt insulation finished with one layer of five-eighths-inch Type X gypsum board on each side. A intersecting bulkhead or partial-height wall is framed with three-and-five-eighths-inch metal studs and finished with one layer of five-eighths-inch Type X gypsum board. A surface-mounted corner guard protects the exterior corner of the intersecting bulkhead.
3.8 C P C2 P C P 1' - 6" 9" CORNER GUARD (1) LAYER OF 5/8" TYPE X GYP.BD ON 3 5/8" METAL STUD (1) LAYER OF 5/8" TYPE X GYP.BD ON 3 5/8" METAL STUD (1) LAYER OF 5/8" TYPE X GYP.BD ON 6" METAL STUD WITH SOUND ATTENUATING BATT AUDITORIUM 05 124 PROMENADE 110 STORAGE 123
