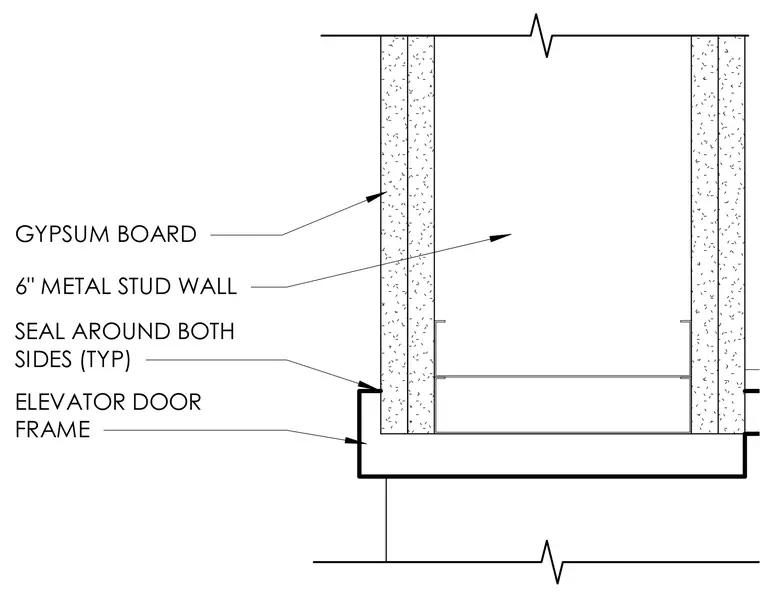

A six-inch metal stud wall is finished on both sides with layers of gypsum board and intersects an elevator door frame. Sealant is applied around both sides of the frame assembly typically.
