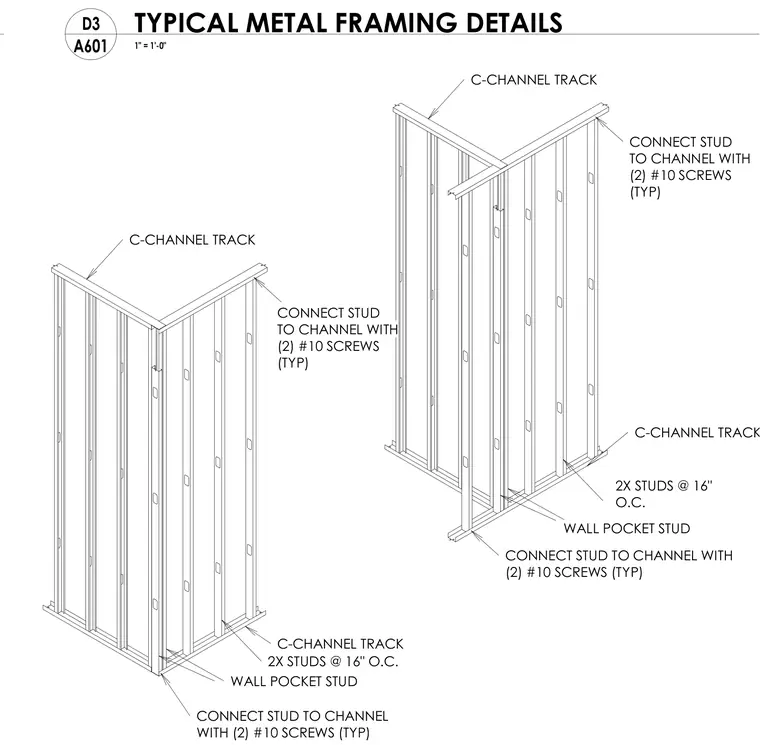

Two metal framing assemblies are shown consisting of vertical studs spaced at sixteen inches on center captured between top and bottom C-channel tracks. Each stud connects to the top and bottom channels with two number ten screws. Wall pocket studs are incorporated into the framing configurations for intersecting partition conditions.
C-CHANNEL TRACK 2X STUDS @ 16" O.C. WALL POCKET STUD CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) C-CHANNEL TRACK CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) WALL POCKET STUD 2X STUDS @ 16" O.C. C-CHANNEL TRACK CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) C-CHANNEL TRACK 1" = 1'-0" A601 D3 TYPICAL METAL FRAMING DETAILS
