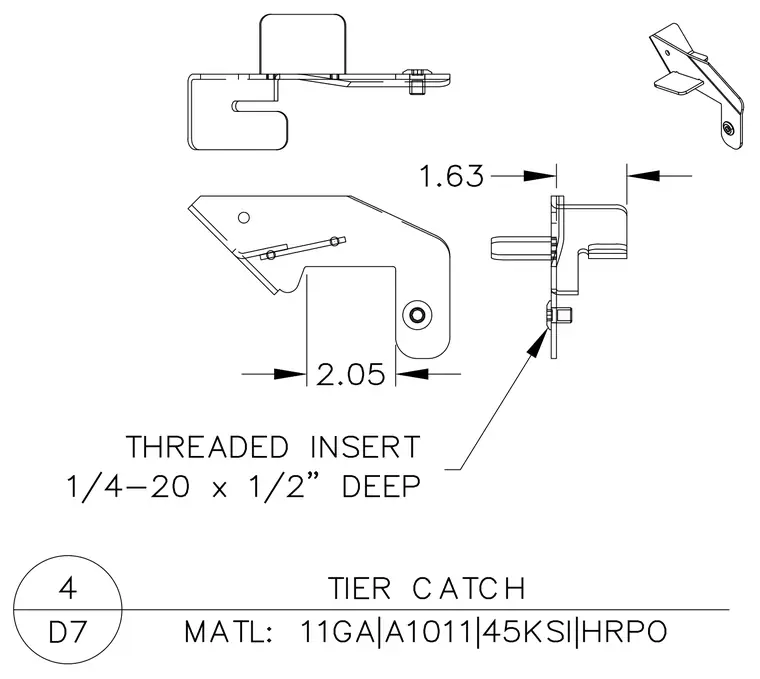

An eleven-gauge ASTM A1011 forty-five KSI hot-rolled pickled and oiled steel tier catch assembly incorporates a quarter-twenty by half-inch deep threaded insert. The multi-view orthographic drawing and isometric projection detail the formed bracket geometry, dimensions, and material specifications.
2.05 1.63 THREADED INSERT 1/4-20 x 1/2" DEEP TIER CATCH 4 D7 MATL: 11GA|A1011|45KSI|HRPO = a ) o E o
