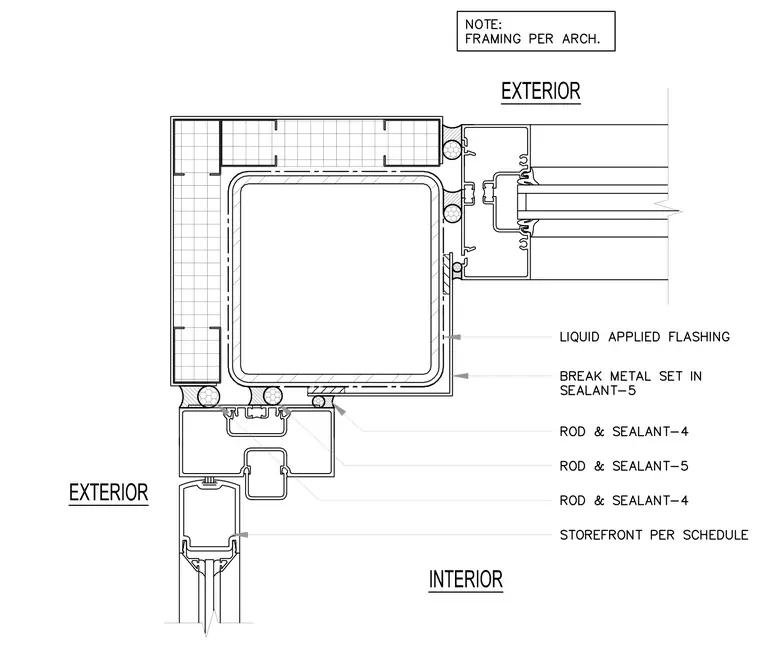

An aluminum storefront system intersects a hollow structural section corner column, transitioning from exterior glazing to the steel framing. A break metal set in sealant-5 wraps the steel tube with liquid-applied flashing applied beneath. Multiple joints are sealed with backing rod and sealant-4 or sealant-5. The storefront framing is installed per schedule with framing per architectural drawings.
