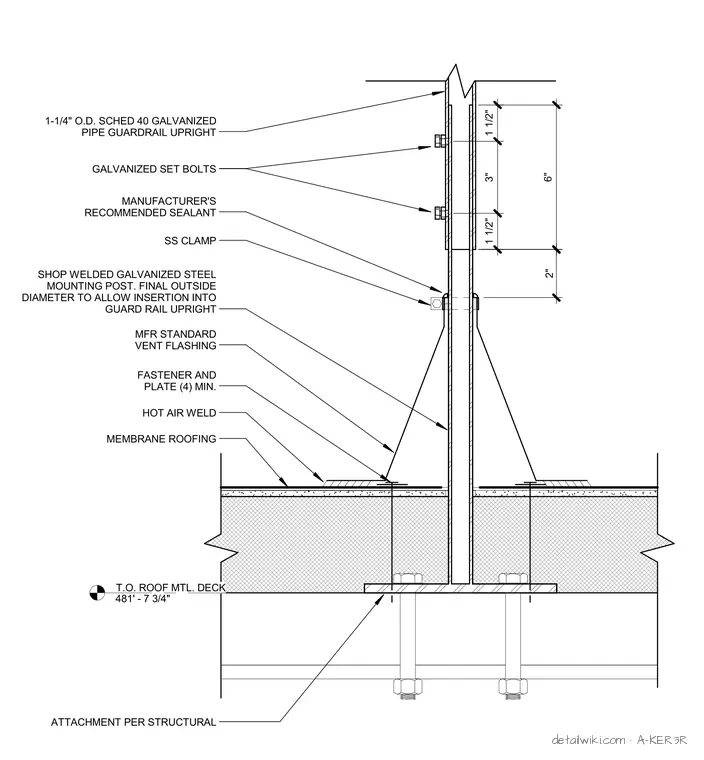

A 1-1/4 inch outside diameter Schedule 40 galvanized pipe guardrail upright fits over a shop-welded galvanized steel mounting post secured with a stainless steel clamp and galvanized set bolts. The mounting post attaches to the roof deck assembly with at least four fasteners and a base plate. Manufacturer's recommended sealant is applied at the joints. A manufacturer standard vent flashing seals around the base, integrated with a hot air weld at the membrane roofing over the top of the roof metal deck.
T.O. ROOF MTL. DECK 481' - 7 3/4" GALVANIZED SET BOLTS HOT AIR WELD MEMBRANE ROOFING 2" 1-1/4" O.D. SCHED 40 GALVANIZED PIPE GUARDRAIL UPRIGHT ATTACHMENT PER STRUCTURAL 6" MFR STANDARD VENT FLASHING SHOP WELDED GALVANIZED STEEL MOUNTING POST. FINAL OUTSIDE DIAMETER TO ALLOW INSERTION INTO GUARD RAIL UPRIGHT SS CLAMP MANUFACTURER'S RECOMMENDED SEALANT 1 1/2" 3" 1 1/2" FASTENER AND PLATE (4) MIN.
