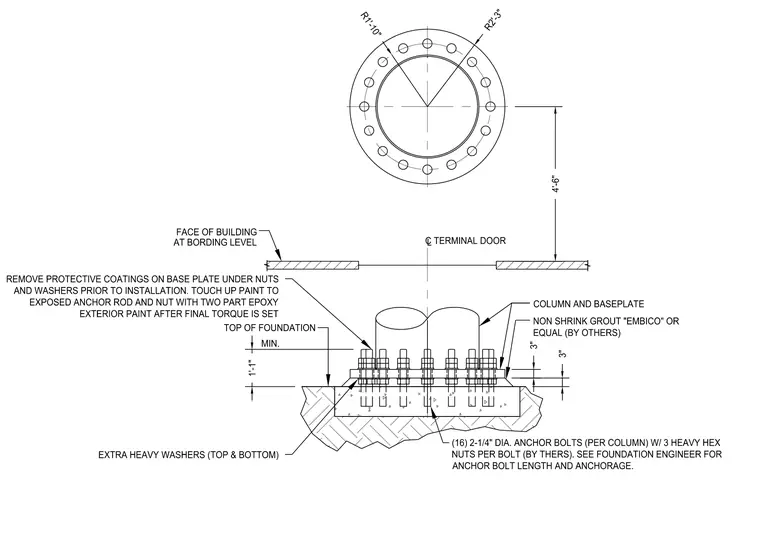

A circular column base plate is anchored to a concrete foundation using sixteen 2-1/4-inch diameter anchor bolts per column, equipped with three heavy hex nuts and extra heavy washers at both top and bottom. Non-shrink grout such as Embico is placed beneath the base plate with a 3-inch clearance above the top of the foundation. Protective coatings are removed from the base plate under nuts and washers prior to installation, and exposed anchor rods and nuts receive a two-part epoxy exterior paint touch-up after final torque is set. The assembly maintains a 4'-6" offset from the centerline of the terminal door and aligns with the building face at the boarding level.
R2'-3" R1'-10" 4'-6" C TERMINAL DOOR L COLUMN AND BASEPLATE 1'-1" MIN. FACE OF BUILDING AT BORDING LEVEL TOP OF FOUNDATION NON SHRINK GROUT "EMBICO" OR EQUAL (BY OTHERS) 3" 3" (16) 2-1/4" DIA. ANCHOR BOLTS (PER COLUMN) W/ 3 HEAVY HEX NUTS PER BOLT (BY THERS). SEE FOUNDATION ENGINEER FOR ANCHOR BOLT LENGTH AND ANCHORAGE. EXTRA HEAVY WASHERS (TOP & BOTTOM) REMOVE PROTECTIVE COATINGS ON BASE PLATE UNDER NUTS AND WASHERS PRIOR TO INSTALLATION. TOUCH UP PAINT TO EXPOSED ANCHOR ROD AND NUT WITH TWO PART EPOXY EXTERIOR PAINT AFTER FINAL TORQUE IS SET
