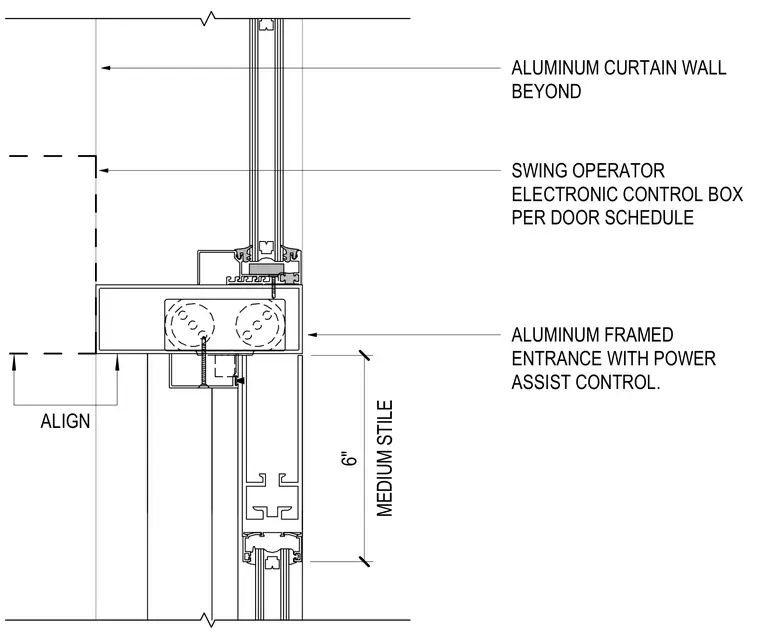

An aluminum framed entrance head detail integrates an electronic control box for a swing operator sized per the door schedule. The assembly features a six-inch medium stile matching an aligned aluminum curtain wall beyond.
SWING OPERATOR ELECTRONIC CONTROL BOX PER DOOR SCHEDULE ALUMINUM FRAMED ENTRANCE WITH POWER ASSIST CONTROL. ALUMINUM CURTAIN WALL BEYOND MEDIUM STILE 6" ALIGN
