Electrical and Communication Penetration Firestop Detail

Materials

Elements

About this detail

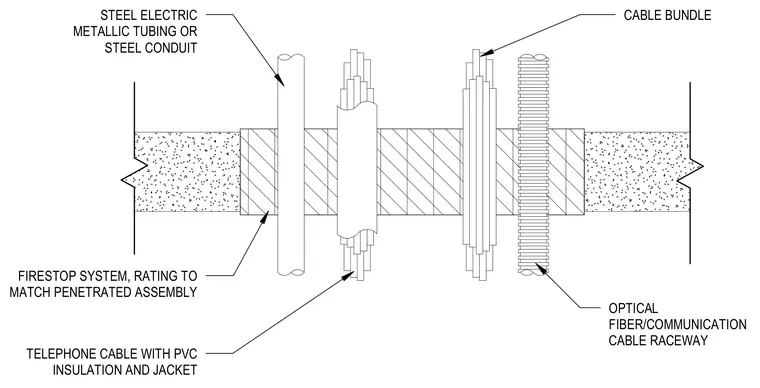

Various electrical, telephone, cable bundle, and optical fiber penetrations pass through a structural assembly. Each service utilizes a listed firestop system with a rating matching the penetrated assembly. Penetrants include steel electrical metallic tubing, steel conduit, telephone cables with PVC insulation and jacket, cable bundles, and optical fiber or communication cable raceways.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
