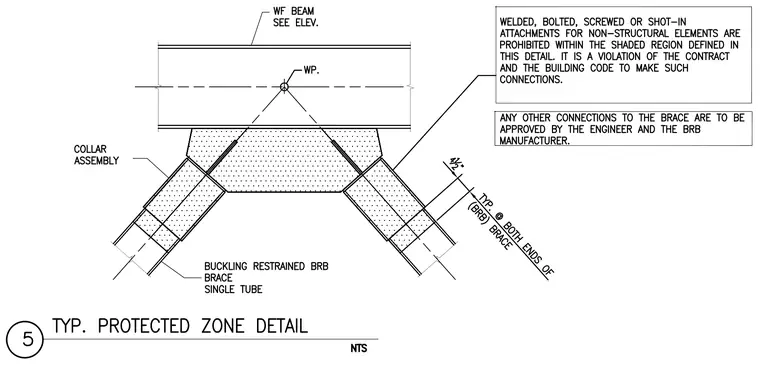

The protected zone configuration features buckling restrained braces intersecting a wide-flange beam with a collar assembly. The work point is located at the intersection of the centerlines, with shaded regions indicating the protected zone where welded, bolted, screwed, or shot-in attachments for non-structural elements are strictly prohibited. Any alternate connections to the brace require explicit approval from the engineer and the buckling restrained brace manufacturer. A four-and-a-half-inch dimension is called out typically at both ends of the buckling restrained brace single tube.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
