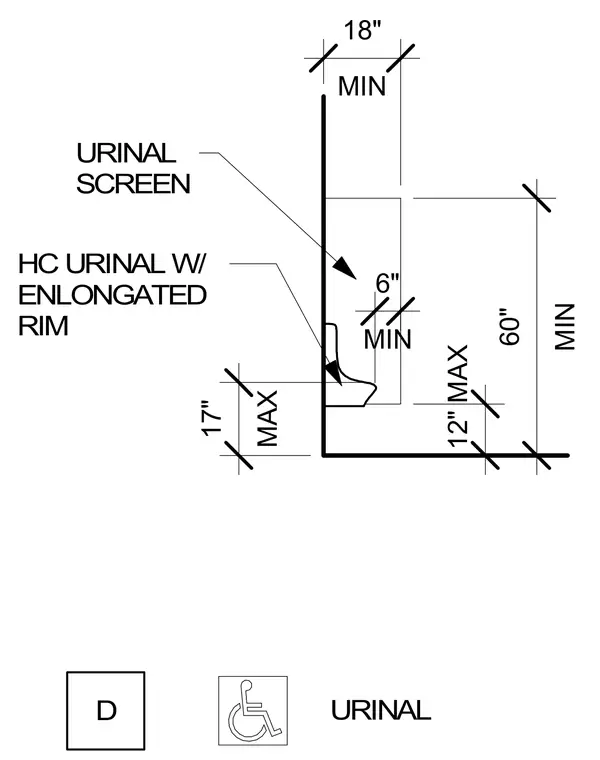

This drawing outlines the required installation dimensions for an accessible urinal with an elongated rim, establishing a maximum rim height of seventeen inches and a maximum twelve-inch clearance to the bottom of the fixture. A urinal screen is positioned adjacent to the fixture, maintaining an eighteen-inch minimum clearance. Vertical wall dimensions indicate a minimum sixty-inch height requirement for the partition screen.
URINAL D URINAL SCREEN HC URINAL W/ ENLONGATED RIM MIN 18" MAX 17" MIN 60" 12" MAX MIN 6"
