Architectural · A-KE4KZ

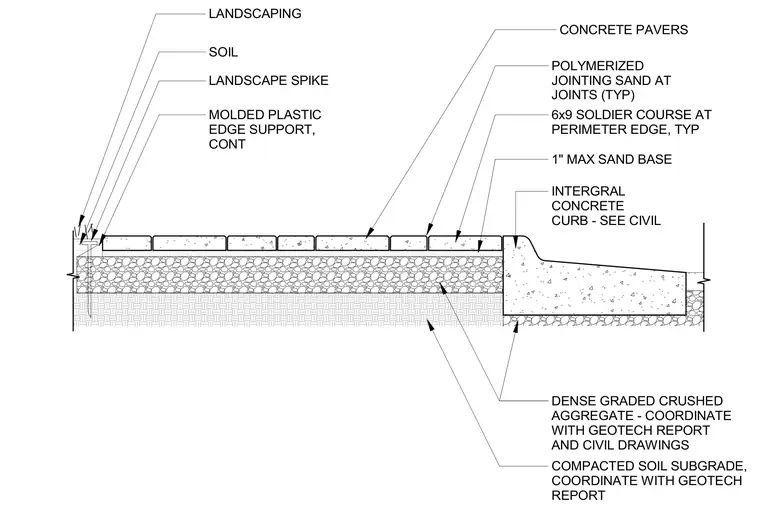

Concrete Paver Sidewalk Edge and Curb Detail

Materials

Elements

About this detail

Concrete pavers rest upon a one-inch maximum sand base layered over a dense-graded crushed aggregate sub-base and compacted soil subgrade, coordinated with the geotechnical report and civil drawings. Polymerized jointing sand fills the joints between the units. A six-by-nine soldier course forms the perimeter edge, restrained by a continuous molded plastic edge support anchored with continuous landscape spikes into the soil and sub-base. An integral concrete curb terminates the opposite side of the paver assembly, coordinated with civil landscaping details.
