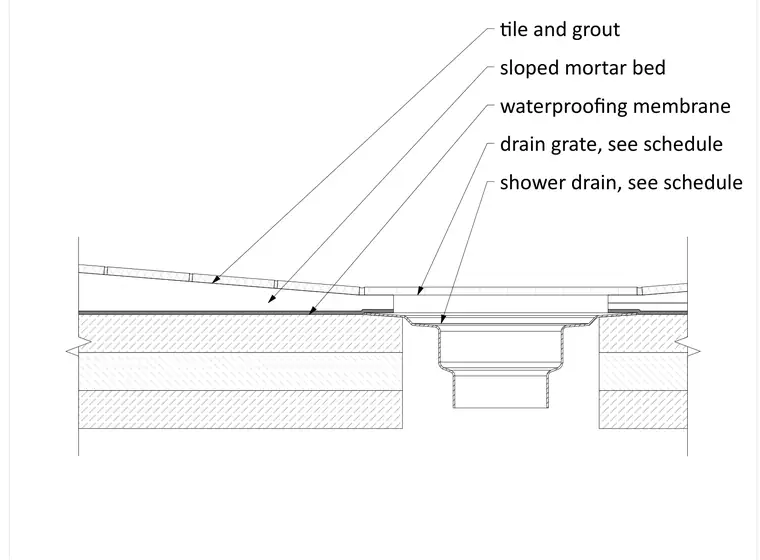

A shower drain with a schedule-specified drain grate sits within a concrete floor assembly. A waterproofing membrane is applied directly over the concrete substrate and tied into the drain body. A sloped mortar bed rests above the waterproofing layer to direct water toward the drain. Finished tile and grout are set atop the sloped mortar bed.
shower drain, see schedule drain grate, see schedule waterproofing membrane sloped mortar bed Ɵle and grout
