Architectural · A-KDM98

Exterior Fin and Corner Framing Plan at Level 2

Materials

Concrete Steel Glass / Glazing Composite

Elements

Beams Walls Curtain Walls Facades / Cladding Decks Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Welded Connection

About this detail

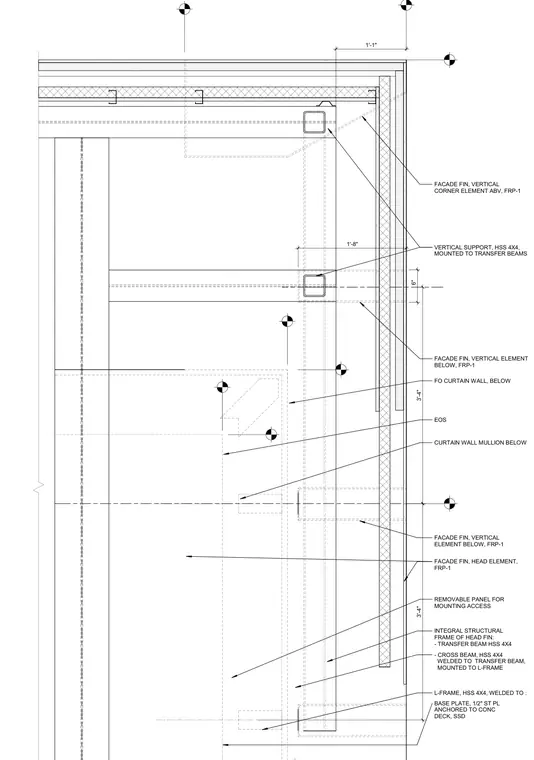

Exterior facade fins and corner support assembly at Level 2. The structural support relies on HSS 4x4 vertical members and transfer beams welded together and mounted to an L-frame configuration. A half-inch steel base plate anchors the assembly to the concrete deck. The facade fins incorporate FRP-1 head elements and vertical corner elements, supplemented by a removable panel for mounting access near the curtain wall mullion below.
