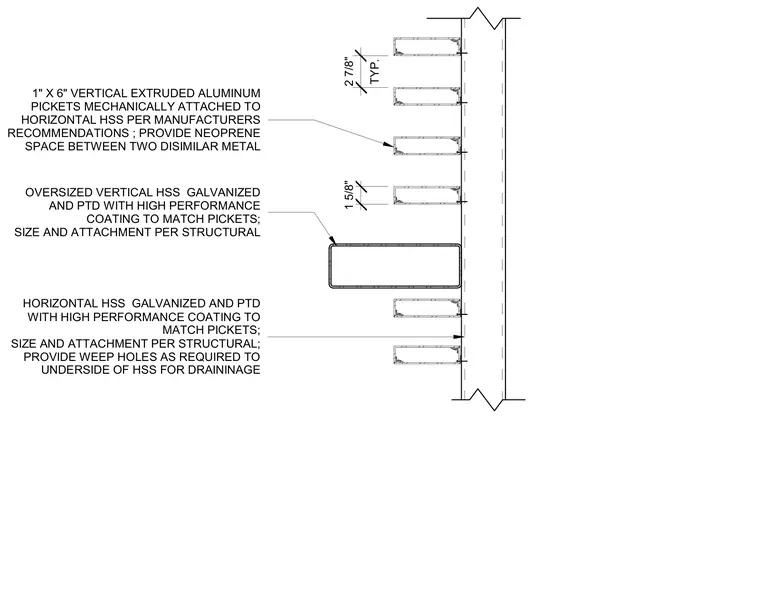

One-by-six-inch vertical extruded aluminum pickets are mechanically fastened to horizontal hollow structural section members according to manufacturer recommendations. A neoprene spacer is provided between the dissimilar metals typically. The oversized vertical and horizontal hollow structural sections are galvanized and painted with a high-performance coating to match the pickets, with sizing and attachment per structural requirements. Weep holes are included on the underside of the hollow structural sections for drainage as required.
OVERSIZED VERTICAL HSS GALVANIZED AND PTD WITH HIGH PERFORMANCE COATING TO MATCH PICKETS; SIZE AND ATTACHMENT PER STRUCTURAL HORIZONTAL HSS GALVANIZED AND PTD WITH HIGH PERFORMANCE COATING TO MATCH PICKETS; SIZE AND ATTACHMENT PER STRUCTURAL; PROVIDE WEEP HOLES AS REQUIRED TO UNDERSIDE OF HSS FOR DRAININAGE 1" X 6" VERTICAL EXTRUDED ALUMINUM PICKETS MECHANICALLY ATTACHED TO HORIZONTAL HSS PER MANUFACTURERS RECOMMENDATIONS ; PROVIDE NEOPRENE SPACE BETWEEN TWO DISIMILAR METAL TYP. 2 7/8" 1 5/8"
