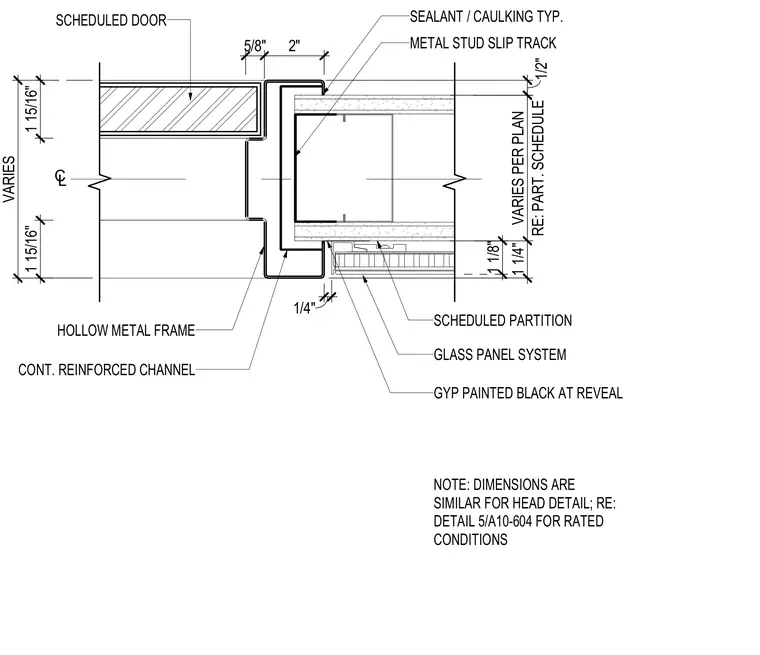

A hollow metal frame connects to a metal stud slip track at a scheduled partition with a continuous reinforced channel. A glass panel system abuts the frame assembly with a gypsum board finish painted black at the reveal. Typical sealant or caulking is applied at the frame and stud intersection. Dimensions are similar for the head detail, and rated conditions are referenced on sheet A10-604.
SCHEDULED PARTITION RE: PART. SCHEDULE VARIES PER PLAN 1 1/4" 5/8" 2" SCHEDULED DOOR GLASS PANEL SYSTEM 1/2" METAL STUD SLIP TRACK SEALANT / CAULKING TYP. HOLLOW METAL FRAME CONT. REINFORCED CHANNEL GYP PAINTED BLACK AT REVEAL 1/4" 1 15/16" 1 15/16" VARIES NOTE: DIMENSIONS ARE SIMILAR FOR HEAD DETAIL; RE: DETAIL 5/A10-604 FOR RATED CONDITIONS 1 1/8" CL
