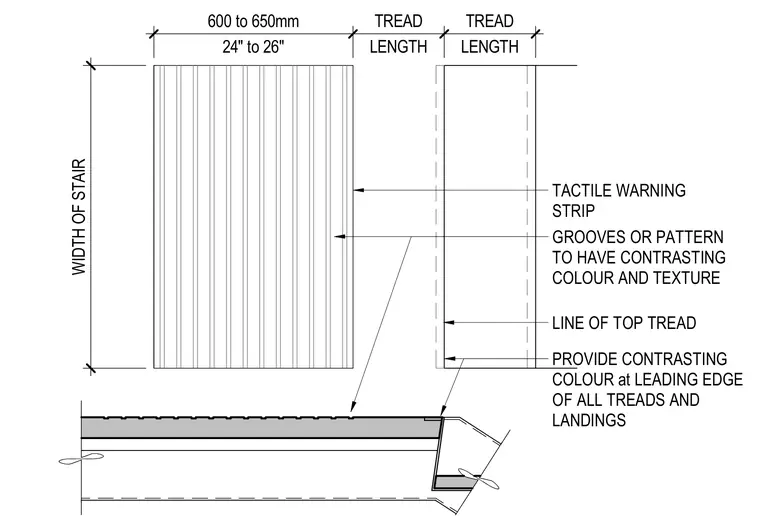

Tactile warning strips are installed at the leading edge of all stair treads and landings across the full width of the stair. The warning surface incorporates grooves or a pattern featuring contrasting color and texture for visual and tactile detection. The strip spans twenty-four to twenty-six inches or six hundred to six-fifty millimeters in depth from the leading edge.
WIDTH OF STAIR PROVIDE CONTRASTING COLOUR at LEADING EDGE OF ALL TREADS AND LANDINGS TACTILE WARNING STRIP GROOVES OR PATTERN TO HAVE CONTRASTING COLOUR AND TEXTURE 24" to 26" 600 to 650mm LENGTH TREAD LENGTH TREAD LINE OF TOP TREAD
