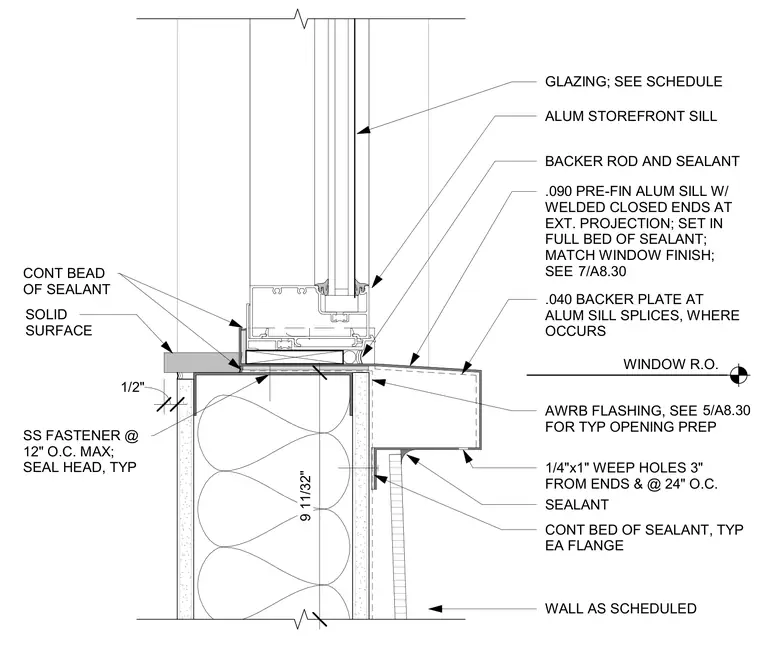

An aluminum storefront sill is supported by a framed wall opening with air-water-resistive barrier flashing and a one-half-inch solid surface sill stool. The zero-point-zero-ninety-inch prefinished aluminum sill features welded closed ends at the exterior projection and is set in a full bed of sealant matching the window finish. A zero-point-zero-forty-inch backer plate occurs at aluminum sill splices, while one-quarter-inch by one-inch weep holes are spaced three inches from ends and at twenty-four inches on center. Stainless steel fasteners secure the assembly at a maximum of twelve inches on center, supplemented by continuous beads of sealant at the interior and exterior interfaces.
GLAZING; SEE SCHEDULE ALUM STOREFRONT SILL BACKER ROD AND SEALANT WINDOW R.O. WALL AS SCHEDULED 9 11/32" CONT BEAD OF SEALANT SS FASTENER @ 12" O.C. MAX; SEAL HEAD, TYP SOLID SURFACE 1/2" 7/A8.30 .090 PRE-FIN ALUM SILL W/ WELDED CLOSED ENDS AT EXT. PROJECTION; SET IN FULL BED OF SEALANT; MATCH WINDOW FINISH; SEE 1/4"x1" WEEP HOLES 3" FROM ENDS & @ 24" O.C. AWRB FLASHING, SEE FOR TYP OPENING PREP .040 BACKER PLATE AT ALUM SILL SPLICES, WHERE OCCURS SEALANT CONT BED OF SEALANT, TYP EA FLANGE 5/A8.30
