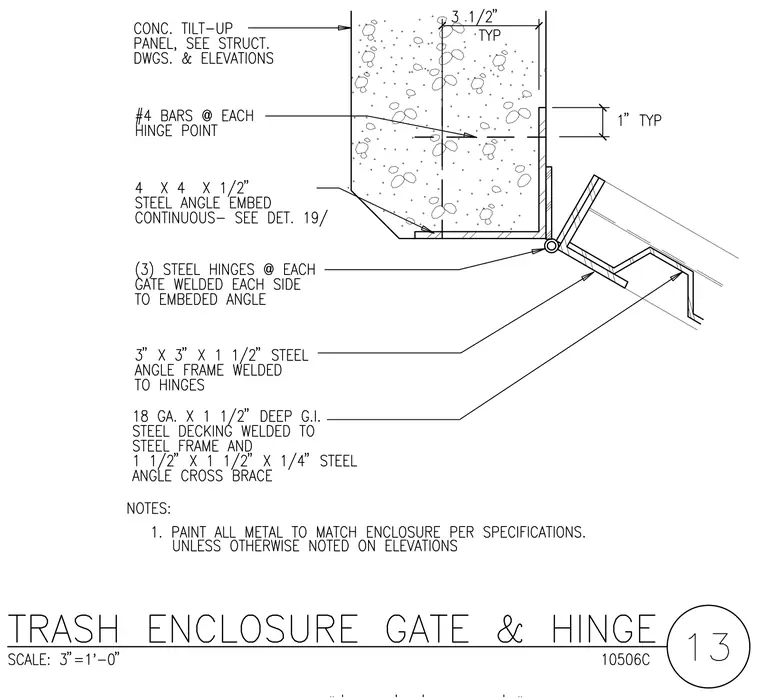

A concrete tilt-up panel serves as the primary wall support, featuring a continuous four-by-four-by-one-half-inch steel angle embedded at the corner edge and reinforced with number four bars at each hinge point. Three steel hinges are welded on each side to the embedded angle and to a three-by-three-by-one-and-one-half-inch steel angle frame. An eighteen-gauge by one-and-one-half-inch deep galvanized steel decking is welded to the steel frame along with one-and-one-half-inch by one-and-one-half-inch by one-quarter-inch steel angle cross braces. All exposed metal is painted to match the enclosure per specifications unless otherwise noted on elevations.
