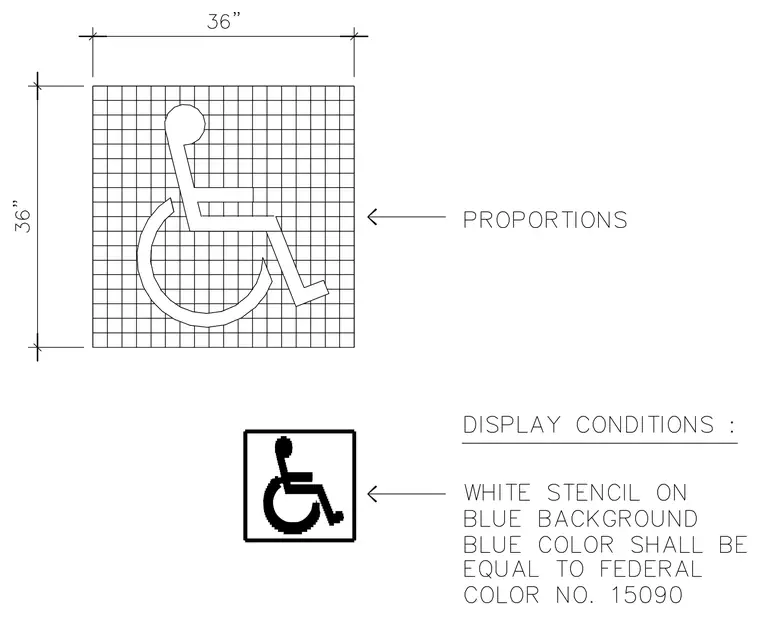

An accessible parking space pavement marking layout is defined by a thirty-six by thirty-six inch grid establishing the standard symbol proportions. The final application consists of a white stencil on a blue background. The blue color matches Federal Color Number 15090.
