Square In-Line Fan and Duct Installation Detail

About this detail

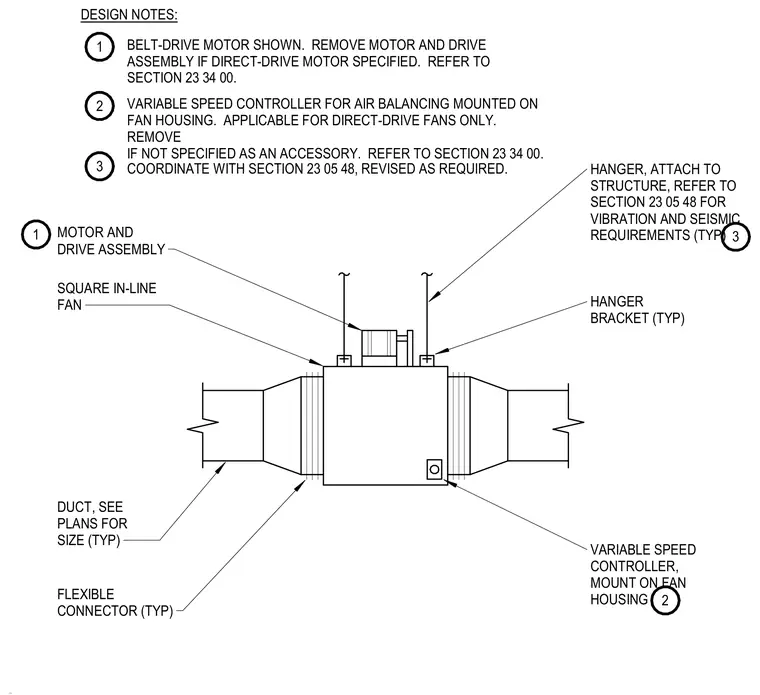

A square in-line fan connects to inbound and outbound ductwork sized per plans using flexible connectors at each side. The fan housing features a top-mounted motor and drive assembly, flanked by hanger brackets tied to overhead structure with hangers. A variable speed controller for air balancing mounts directly onto the fan housing. Vibration and seismic attachment requirements follow coordination with structural provisions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
