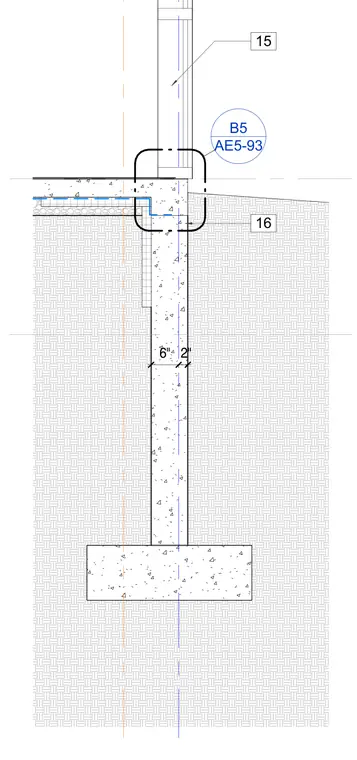

An exterior wall section shows the concrete foundation wall and continuous footing supporting the southwest wing facade. The concrete stem wall rests on a spread footing, with dimensions indicating a six-inch wall thickness and a two-inch offset. A concrete slab-on-grade transitions to the interior face of the foundation wall above the subgrade drainage and insulation layers. The exterior grade slopes away from the foundation wall.
